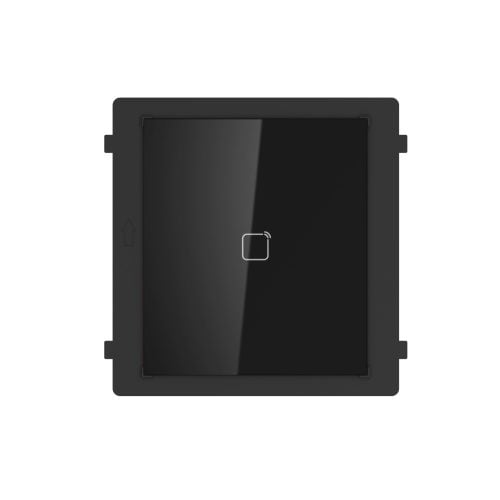

Hikvision Gen2 DS-KD-M Video Intercom Mifare Card Reader Module

Model / SKU: DS-KD-M

Hikvision Gen2 DS-KD-M Video Intercom Mifare Card Reader Module. Hikvision DS-KD-M Video Intercom Mifare Card Reader Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides a Proximity Card Reading to the system. Card Reading allows unlocking of the door via Mifare Access Card. Hikvision DS-KD-M Video Intercom Mifare Card Reader Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides a Proximity Card Reading to the system. Card Reading allows unlocking of the door via Mifare Access Card. INSTRUCTIONS Issue Card via Main (Master) Card: You can swipe card to issue it after swiping the main card in advance. Steps: 1. Swipe the main (master) card on the card reading area, and hear two beeps. 2. Swipe the unauthorized sub cards in turn after hearing a beep. 3. Swipe the main card again to end the card issuing process. KEEP MASTER CARD SAFE System Parameters Internal card reader: Built-in Card Reader Processor: Embedded MCU Processor Device Interfaces Module-connecting: 2(1 Input, 1 Output) General Card type: Mifare Card Power output: 12VDC(Powered for the other module) Power input: 12VDC(Powered by the other module) DIP switch: 8 Installation: Flush Mounting, Surface Mounting Power Consumption: ≤2W Working Humidity: 10% to 95% Working Temperature: -40° C to +60° C (-40° F to 140° F) IP Protection Level: IP65 Dimensions(L × W × H): 98.5mm×100mm×33.7mm(3.87″×3.95″×1.33″) User Manual HIK-KD-M Datasheet
