Hikvision · Intercoms

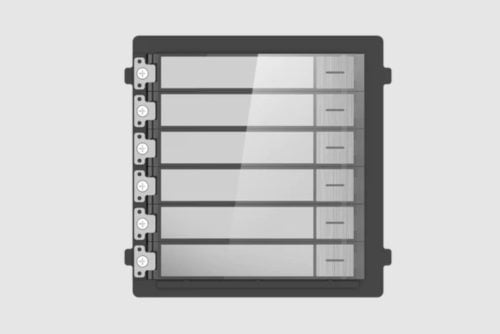

Hikvision Gen2 DS-KD-KK/S Video Intercom Nametag Module (Stainless Steel)

Model / SKU: DS-KD-KK/S

Hikvision Gen2 DS-KD-KK/S Video Intercom Nametag Module (Stainless Steel). Hikvision DS-KD-KK/S Video Intercom Nametag Modular Video STAINLESS STEEL connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides simple Dial up of appartments with the push of the associated nametag button. Up to 8 modules can be connected to a single DS-KD8003-IME1 Door Station unit. Hikvision DS-KD-KK/S Video Intercom Nametag Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides simple Dial up of appartments with the push of the associated nametag button. Up to 8 modules can be connected to a single DS-KD8003-IME1 Door Station unit. System Parameters Operation method: Physical Button Processor: Embedded MCU Processor Device Interfaces Debug: 1 Module-connecting: 2(1 Input, 1 Output) General DIP switch: 8 Installation: Flush Mounting, Surface Mounting Power Supply: Powered by DS-KD8003-IME1 Power Consumption: ≤2W Physical button: 6 Working Humidity: 10% to 95% Working Temperature: -40° C to +60° C (-40° F to 140° F) IP Protection Level: IP65 Dimensions(L × W × H): 98.21mm×100.21mm×33.7mm(3.87″×3.95“×1.33”) User Manual Datasheet
