Panasonic · Intercoms

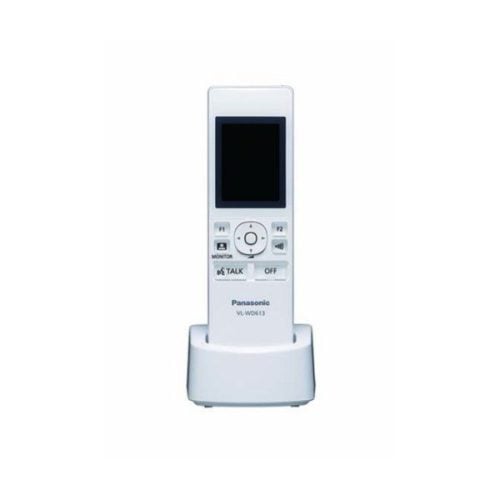

Panasonic VL-WD613AZ Optional wireless monitor for Panasonic VL-SWD501 kit

Model / SKU: VL-WD613AZ

Panasonic VL-WD613AZ Optional wireless monitor for Panasonic VL-SWD501 kit. Optional Wireless DECT handset VL-WD613 Model number and name Wireless Monitor Station (Sub monitor) Main body Charger Power source Rechargeable Ni-MH (AAA x 2) AC adaptor (PNLV226) Input: 220-240 V AC, 0.1 A, 50/60 Hz Output: 5.5 V DC, 0.5 A Power consumption — Standby: Approx. 0.4 W (when the sub monitor is not placed in the charger) During charging: Approx. 1.4 W Dimensions (H x W x D) (Excluding protruding sections) 173 x 52 x 30 mm 43 x 81 x 76 mm Weight 160 g (including the batteries) 70 g (excluding the AC adaptor) Operating environment Ambient temperature: Approx. 0 °C to +40 °C Relative humidity (non-condensing): up to 90 % Ambient temperature: Approx. 0 °C to +40 °C Relative humidity (non-condensing): up to 90 % Display 2.2-inch colour / QVGA (320×240 pixels) — Display language Depends on main monitor — Talking method Hands-free — Frequency range 1.88 GHz to 1.90 GHz — Transmitting range Approx. 100 m (line-of-sight distance from the main monitor) — External material ABS resin ABS resin
