Product image. Check the selected model, lens, colour and package contents before ordering.

Hikvision · Intercoms

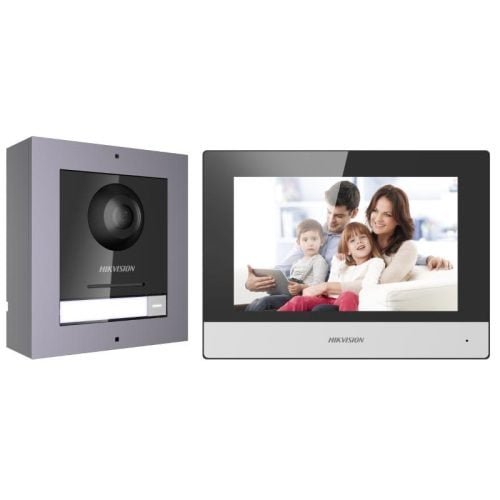

Hikvision Intercom DS-KIS602 2mp Kit, KD8003-IME1, KH6320, SURFACE Mount

Model / SKU: DS-KIS602

Hikvision Intercom DS-KIS602 2mp Kit, KD8003-IME1, KH6320, SURFACE Mount. ​ The Hikvision DS-KIS602 IP Video Intercom Kit enhances home security with a 7-inch indoor touch screen and a 2-megapixel HD door station featuring a wide viewing angle. It supports Power over Ethernet for simplified installation and offers features like remote unlocking via the Hik-Connect app, live video streaming, and wireless connectivity. Key Features: IP video intercom kit for villa or house, only one call button DS-KD8003-IME1/Surface x1 DS-KH6320-WTE1 x1 4 port standard PoE switch x1 16GB TF card x1 AU power supply adaptor included DS-KH6320-WTE1 Datasheet DS-KD8003-IME1/Surface Datasheet ​The Hikvision DS-KIS602 is an IP video intercom kit designed for villas or houses, featuring a user-friendly 7-inch touch screen indoor station (DS-KH6320-WTE1) with a 1024 × 600 resolution, standard PoE support, and the ability to store messages and images on a 16GB TF card. The kit also includes a surface-mounted door station (DS-KD8003-IME1) equipped with a 2 MP HD camera, access control functionality, noise suppression, echo cancellation, and IR illumination for low-light conditions. Technical Specifications: System Parameters Processor Embedded MCU Processor Operation System Embedded Linux Operation System Display Resolution 1024 × 600 Display Screen 7-inch colorful TFT screen Audio Compression Rate 64 Kbps Audio Compression Standard G.711 U Audio Input Built-in omnidirectional microphone Audio Output Built-in loudspeaker Audio Quality Noise suppression and echo cancellation Ethernet 10/100 Mbps Self-Adaptive Ethernet Network Protocol TCP/IP, RTSP I/O Input 4 I/O Output 2 Power Supply 12 VDC/PoE (IEEE 802.3af) Power Consumption ≤10 W Working Temperature -40° C to +60° C (-40° F to 140° F) Working Humidity 10% to 95% Dimension (L x W x D) 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″) Weight 683 g (with packaging), 355 g (without packaging) IP Protection Level IP65 Memory 128 MB Dimensions (L × W × H) 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″)
