Hikvision · Intercoms

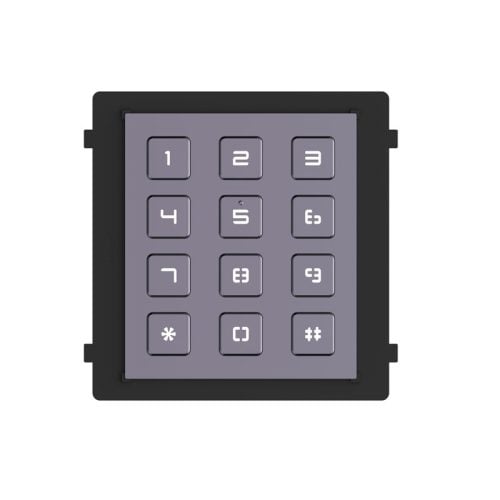

Hikvision Gen2 DS-KD-KP Video Intercom Keypad Module

Model / SKU: DS-KD-KP

Hikvision Gen2 DS-KD-KP Video Intercom Keypad Module. Hikvision DS-KD-KP Video Intercom Keypad Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides Code / PIN entry to the system. The Code / PIN allows calling of individual apartments as well as unlocking of the door via PIN. DS-KD-KP_Keypad-Module_Datasheet Hikvision DS-KD-KP Video Intercom Keypad Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides Code / PIN entry to the system. The Code / PIN allows calling of individual apartments as well as unlocking of the door via PIN. System Parameters Operation method: Physical Button Processor: Embedded MCU Processor Device Interfaces Debug: 1 Module-connecting: 2(1 Input, 1 Output) General Power output: 12VDC(Powered for the other module) Power input: 12VDC(Powered by the other module) DIP switch: 8 Protection level: IP65, IK7 Installation: Flush Mounting, Surface Mounting Power Consumption: ≤2W Physical button: 12 Working Humidity: 10% to 95% Working Temperature: -40° C to +60° C (-40° F to 140° F) Dimensions(L × W × H): 98.5mm×100mm×33.7mm(3.87″×3.95″×1.33″)
