Hikvision DS-PDCL12DT-EG2 Wired Dual-Tech 360 Degree Ceiling Detector with EOLR

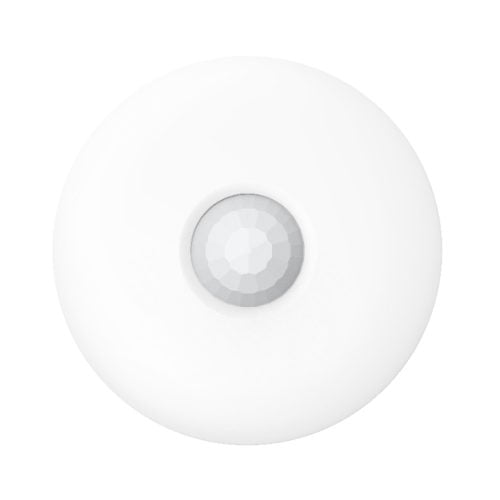

Product image. Check the selected model, lens, colour and package contents before ordering.

Product details

Brand: Hikvision
Model / SKU: DS-PDCL12DT-EG2
Category: Alarm

Hikvision · Alarms

Hikvision DS-PDCL12DT-EG2 Wired Dual-Tech 360 Degree Ceiling Detector with EOLR

Model / SKU: DS-PDCL12DT-EG2

Hikvision DS-PDCL12DT-EG2 Wired Dual-Tech 360 Degree Ceiling Detector with EOLR. The Hikvision HIK-PDCL12DT-HW indoor ceiling dual-tech detector features motion and microwave detection, and tamper protection. It has a 360-degree coverage up to 12m. Digital quad pyro sensor + 24GHz microwave Automatic sensitivity Wide voltage adaptation and on-board EoL resistor HIK-PDCL12DT-HW Datasheet Detection Performance Detection Method Passive Infrared;Microwave Detection Range 12m Detection Angle 360° Detection Zones 172 Detectable Speed 0.3～2m/s Sensitivity Auto;Low White Light Filter 6500lux Microwave Frequency 24GHz(24.15～24.25GHz) Digital Temperature Compensation Support Creep Zone Protection Support Feature Digital Processing Support Sealed Optics Support Tamper Protection Front Interface LED Indicator Green(PIR), Red(Microwave), Blue(Alarm) Electrical characteristics Power consumption 100mA Max Electrical Characteristics Power Supply 9 to 16 VDC Typical Voltage 12 VDC General Operation Temperature -10 °C to 55 °C (14 °F to 131 °F) Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Operation Humidity 10% to 90% Dimension(WxHxD) φ120 mm x 33.2 mm Weight 138g Mounting Height 2.4 to 4m Mounting Method Ceiling Application Scenario Indoor

$66.00

incl. GST · Equipment supply

Price checked 6 September 2026

Collection availability is confirmed after your order. Please wait for your ready-to-collect notice before visiting.

Free click & collect from Lynbrook. Pay online, then wait for your ready-to-collect email.

Visit showroom ↗Collection steps ↗Need shipping? ↗

Ask about this product ↗

At a glance

Alarm accessory

Showroom enquiries & collection

Ask about this model at 12 Stelvio Close, Lynbrook VIC 3975. Monday–Friday, 9am–5pm; Saturday 9 am–1 pm; closed Sunday. Confirm availability and collection arrangements with the showroom before travelling.

Visit our Lynbrook showroom ↗

Installation & compatibility

Equipment supply does not include installation unless expressly included in your confirmed quote. Check exact model numbers, connections and any required accessories with the team before buying. Confirm setup, cabling and the full work included in your property-specific quote.

Plan a compatible alarm setup

Check whether this listing is a kit, panel, detector, keypad or accessory. Bring your existing panel model and a property plan to confirm compatible devices, wired or wireless connections, power and the intended alert path. A shared brand name alone does not establish compatibility.
