Hikvision · Intercoms

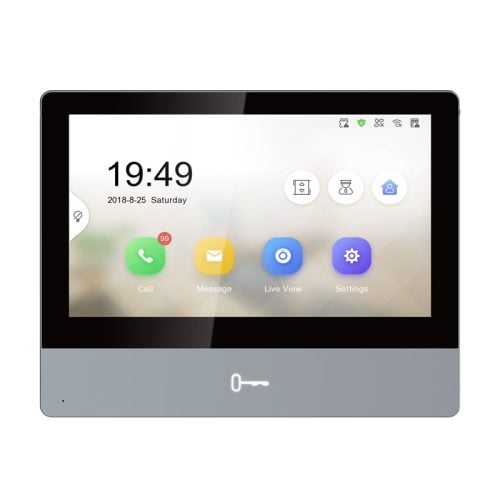

Hikvision DS-KH8350-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station (with WiFi)

Model / SKU: DS-KH8350-WTE1

Hikvision DS-KH8350-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station (with WiFi). Hikvision DS-KH8350-WTE1 Gen2 7 Inch Video Intercom Room Station with WiFi. DS-KH8350-WTE1, Reddot award 2017 winner 7“ Touch-Screen Indoor Station, 7-inch Colorful TFT LCD, display resolution: 1024 * 600;10/100Mbps Ethernet, Wi-Fi 802.11b/g/n;standard PoE/ 12 VDC.TF card, max 32G Hikvision DS-KH8350-WTE1 Gen2 7 Inch Video Intercom Room Station with WiFi. DS-KH8350-WTE1, Reddot award 2017 winner 7“ Touch-Screen Indoor Station, 7-inch Colorful TFT LCD, display resolution: 1024 * 600;10/100Mbps Ethernet, Wi-Fi 802.11b/g/n;standard PoE/ 12 VDC.TF card, max 32G Key Feature • Premium tempered glass. • Aerospace-grade aluminum. • New UI V2.0: User friendly design. • 7-inch colorful IPS capacitive touch screen with resolution 1024 × 600. • 8.6 mm Ultra-slim design. • Reddot award 2017 winner. • Standard PoE. • Support capture while video calling. • Remote unlocking via the client software or the mobile client App. • Views live videos of door station and external cameras. System Parameters Operation System: Embedded Linux Operation System Flash: 32MB Memory: 128MB Display Parameters Display Screen: 7-inch colorful IPS LCD Display Resolution: 1024 × 600 Operation Method: Capacitive Touch Screen, Physical Button Audio Parameters Audio Input: Built-in Omnidirectional Microphone Audio Output: Built-in Loudspeaker Audio Compression Standard: G.711 U Audio Compression Rate: 64 Kbps Audio Quality: Noise Suppression and Echo Cancellation Network Parameters Wired network: 10/100 Mbps self-adaptive network Wireless network: Wi-Fi 802.11b/g/n Network Protocol: TCP/IP, SIP, RTSP Network interface: 1 RJ-45 10/100 Mbps self-adaptive Device Interfaces I/O Output: 2 Alarm Input: 8-ch alarm inputs RS-485: Supported TF Card (micro SD card): Max to 32 G, SD 2.0 or lower version General Power Supply: IEEE802.3af standard PoE, 12 VDC/1A Power Supply via Detector: 12 V, 200 mA Power Consumption: ≤7W Working Humidity: 10% to 90% Working Temperature: -10° C to + 55° C (14° F to 131° F) Dimensions(L × W × H): 180 mm × 140 mm × 22.4 mm (7.09″ × 5.51″× 0.88″) Certification: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE, UL, CB, RCM User Manual Datasheet Operation Guide Configuration Guide
