Hikvision · Intercoms

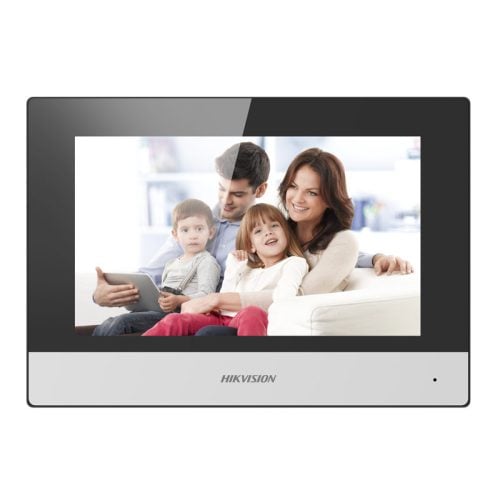

Hikvision DS-KH6320-WTE2 Gen2 2WIRE Video Intercom 7-Inch Touch Screen Indoor Room Station WIFI

Model / SKU: DS-KH6320-WTE2-2WIRE

Hikvision DS-KH6320-WTE2 Gen2 2WIRE Video Intercom 7-Inch Touch Screen Indoor Room Station WIFI. 2-wire IP indoor station 7“ capacitive Touch-Screen, Wi-Fi TF card support, max 32G 8-ch alarm input, 2x alarm output, 1xRS485 Remote unlocking via the client or APP Views live videos of door stations and linked cameras NOTE – THIS 2 WIRE VARIANT HAS BEEN DISCONTINUED. HIKVISION HAS REPLACED THIS WITH THE Y SERIES WHICH ISN”T COMPATIBLE. If you’re looking for this exact model try ebay to find older models. System Parameters Operation Method Capactive touch Operation System Embedded Linux operation system Processor Basic Frequency 1 G Memory 128 MB Flash 16 MB (32 MB hardware compatibility) Alarm Parameters Relay Output 2 Network Parameters Network Protocol TCP/IP, SIP, RTSP Network Interface Two-wire interface Audio Parameters Audio Input Build-in Omnidirectonal microphone Audio Output Built-in loudspeaker Audio Compression Standard G.711 U Audio Compression Rate 64 Kbps Audio Quality Noise suppression and echo cancellation Volume Local or software control General Power Supply Two-wire Power Consumption ≤ 6 W Working Temperature -10 °C to 50 °C (-14 °F to 122 °F) Working Humidity 0% to 90% Dimension (W × H × D) 200 mm × 140 mm × 15.1 mm (7.87″ × 5.51″ × 0.59″) Display Parameters Display Screen 7-inch TFT LCD Display Resolution 1024 × 600 Device Interfaces Alarm Input 8 zones alarm input TF Card Support, Max. 32 GB RS-485 1 Extended Application Mobile Client Support IPC Support HIK-KH6320-WTE2 Datasheet Operation Guide Configuration Guide Quick Start Guide
