Product image. Check the selected model, lens, colour and package contents before ordering.

Hikvision · Intercoms

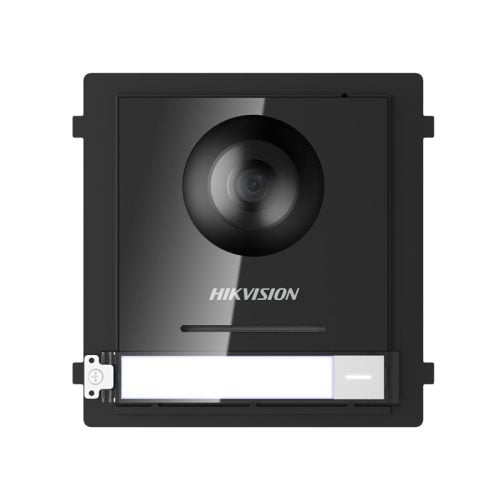

Hikvision DS-KD8003Y-IME2 Gen2 Y Series 2 Wire Intercom, Door Station with Camera, 1 Button, IP65

Model / SKU: DS-KD8003Y-IME2

Hikvision DS-KD8003Y-IME2 Gen2 Y Series 2 Wire Intercom, Door Station with Camera, 1 Button, IP65. The Hikvision 2nd Generation offers a flexible modular range of 2 wire intercoms. The DS-KD8003Y-IME2 Y SERIES is a door station with a 2MP HD camera, which supports up to 8 extension modules. Being a modular and customisable design, this allows the SI to create an entry door panel consisting of one or all the following options; electronic tenant directory, digital keypad, nametag, RFID reader and display modules. Two-pin wire for power supply and network access Access control function Noise suppression and echo cancellation H.264 video compression Low illumination Tampering alarm Fisheye camera with IR supplement light Supports sub-modules’ access (max. 8) Nametag customization DS-KD8003Y-IME2-Two-wire-main-unit_Datasheet DS-KD8003-IME2-Installation-Guide DS-KD8003-IME2-QSG DS-KD8003-IME1-SubModules-Guide System Parameters Operation Method One touch key Operation System Embedded Linux operation system Processor Embedded microcontroller Alarm Parameters Relay Output 2, NC + NO separately draw forth Network Parameters Network Protocol TCP/IP, RTSP Wired Network Interface Two-wire transmission Video Parameters Video Compression Standard H.264 Video Streaming Main stream: 1080p@30fps, 720p@30fps (configurable)͖’ sub stream: D1 Resolution Main stream: 1920 × 1080, (720p configurable); sub stream: 720 × 480 Night Vision Support low light and IR lightsupplement mode BLC Support Anti-Flicker Frequency 50 Hz, 60 Hz Camera 2MP super definition camera Field Of View Horizontal 180°, vertical 96° Wide Dynamic Range Real wide dynamic Device Interfaces Alarm Input 4 Audio Parameters Audio Compression Rate G.711 U Audio Compression Standard 64 Kbps Audio Input Omnidirectional microphone Audio Output Loudspeaker, 20 cm sound effect> 80db Audio Quality Noise suppression and echo cancellation Audio Intercom Full-duplex two-way audio intercom General Protection Level IP 65 Button 1 Power Input 24 VDC two-wire power supply (< 16 W) or 12 VDC independent power supply (< 20 W) Working Temperature -40 °C to 60 °C (-40 °F to 140 °F) Working Humidity 10% to 95% Installation Wall mounting Power Output 12 VDC (only for power supply of submodule) Tamper 1 DS-KD8003-IME2-Datasheet DS-KD8003-IME2-Installation-Guide DS-KD8003-IME2-QSG DS-KD8003-IME1-SubModules-Guide Image Name Price Buy hf:att:pa_ai-technology hf:att:pa_audio-features hf:att:pa_camera-count hf:att:pa_camera-style hf:att:pa_detection-features hf:att:pa_deterrence-features hf:att:pa_environmental-features hf:att:pa_focal-length hf:att:pa_hdd-bays hf:att:pa_hdd-included hf:att:pa_ik-rating hf:att:pa_included-storage hf:att:pa_installation-level hf:att:pa_ip-rating hf:att:pa_kit-camera-style hf:att:pa_lens-type hf:att:pa_low-light-technology hf:att:pa_max-recording-resolution hf:att:pa_mounting-position hf:att:pa_night-vision-range hf:att:pa_night-vision-type hf:att:pa_optical-zoom hf:att:pa_poe-ports hf:att:pa_power-connectivity hf:att:pa_protocol-compatibility hf:att:pa_recorder-channels hf:att:pa_remote-viewing hf:att:pa_resolution hf:att:pa_specialist-features hf:att:pa_system-format hf:att:pa_white-light-range hf:att:pa_zoom-type Hikvision DS-KIS702Y-P Video Intercom Two-Wire Kit $ 455.00 $ 723.00 inc GST +3 Year Warranty & Support Hikvision Gen2 DS-KD-ACW1 Video Intercom Surface Mount Housing – 1 Module $ 59.00 inc GST +3 Year Warranty & Support Hikvision Gen2 DS-KD-ACF1 Video Intercom Flush Mount Housing – 1 Module $ 40.00 inc GST +3 Year Warranty & Support
