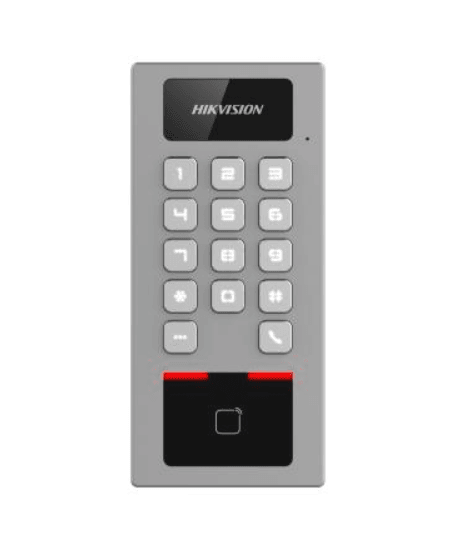

Hikvision DS-K1T502DBWX Access Control Terminal with Intercom (no camera)

Model / SKU: DS-K1T502DBWX

Hikvision DS-K1T502DBWX Access Control Terminal with Intercom (no camera). Manage access control and intercom functions in one device IP65 & IK09 protections, as well as increased stability with zinc alloy materials Supports multiple authentication methods (card, PIN, etc.) Remote control via the Hik-Connect mobile app Connects to external access controller via Wiegand protocol Intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware RS-485 communication for connecting external card reader and calling elevator Supports AP mode Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App Supports up to 256 GB SD card memory Supports PIN settings under platform mode and local mode Setting the priority of wired network and wireless network is available DS-K1T502DBWX-Access-Control-Terminal_Datasheet System Operating System Linux Video Video Compression Standard H.264 and H.265 Network Wired Network 10 M/100 M self-adaptive Wi-Fi Support Interface Network Interface 1 Lock Control 1 Exit Button 1 Door Contact Input 1 Alarm Input 1 Alarm Output 1 TAMPER 1 RS-485 1 Wiegand 1 (output) SD Card Slot 1 Capacity Card Capacit y 100,000 Event Capacity 300,000 Authentication Card Type M1 card;DESfire card Card Reading Distance 0 ~ 3 cm General Power Supply 1 A (12 VDC to 24 VDC) Power Consumption ≤12 W Working Temperature -40 ℃ ~ +70 ℃ (-40 °F ~ +158 °F) Protective Level IK09, IP65 Language Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish Function Two-Way Audio Support Hik-Connect Support Image Name Price Buy hf:att:pa_ai-technology hf:att:pa_audio-features hf:att:pa_camera-count hf:att:pa_camera-style hf:att:pa_detection-features hf:att:pa_deterrence-features hf:att:pa_environmental-features hf:att:pa_focal-length hf:att:pa_hdd-bays hf:att:pa_hdd-included hf:att:pa_ik-rating hf:att:pa_included-storage hf:att:pa_installation-level hf:att:pa_ip-rating hf:att:pa_kit-camera-style hf:att:pa_lens-type hf:att:pa_low-light-technology hf:att:pa_max-recording-resolution hf:att:pa_mounting-position hf:att:pa_night-vision-range hf:att:pa_night-vision-type hf:att:pa_optical-zoom hf:att:pa_poe-ports hf:att:pa_power-connectivity hf:att:pa_protocol-compatibility hf:att:pa_recorder-channels hf:att:pa_remote-viewing hf:att:pa_resolution hf:att:pa_specialist-features hf:att:pa_system-format hf:att:pa_white-light-range hf:att:pa_zoom-type Hikvision DS-3E1105P-EI 4 Port Smart POE Switch $ 64.00 inc GST +3 Year Warranty & Support Hikvision DS-KH6320-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station with Wifi $ 195.00 $ 266.00 inc GST +3 Year Warranty & Support Hikvision DS-KH6320-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station with Wifi (WHITE) $ 266.00 inc GST +3 Year Warranty & Support Read more
