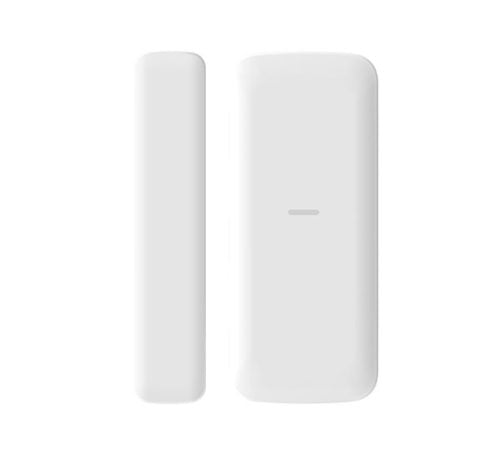

Hikvision AX PRO Series DS-PDMCS-EG2-WB Wireless Slim Magnetic Contact

Product image. Check the selected model, lens, colour and package contents before ordering.

Product details

Brand: Hikvision
Model / SKU: DS-PDMCS-EG2-WB-Small
Category: Alarm

Hikvision · Alarms

Hikvision AX PRO Series DS-PDMCS-EG2-WB Wireless Slim Magnetic Contact

Model / SKU: DS-PDMCS-EG2-WB-Small

Hikvision AX PRO Series DS-PDMCS-EG2-WB Wireless Slim Magnetic Contact. Slim design for an unobtrusive (unnoticeable) installation Fully remote configurable through App Multiple enrollment methods and easy installation design Frequency hopping against jamming for reliable transmission DS-PDMCS-EG2-WB_Datasheet Quick-Start-Guide User manual Detection Performance Detection Method Opening Contact Detection Gap 52 mm Max Feature Digital Processing Support Tamper Protection Front;Rear Environment Temperature Indicator Support Signal Strength Indicator Support Interface Alarm Input Normally Closed;Normally Open;Impulse Count Power Switch Power Up Enrolling LED Indicator Blue (Alarm) Transmission Transmission Technology Tri-X Wireless Transmission Method Two-Way RF Wireless Transmission Frequency 433MHz Transmission Security AES-128 Encryption Transmission Range (Free Space) 1.2Km Frequency Hopping Support Enrolling Method Power up;Remote ID;QR Code Electrical Characteristics Standard Battery Life 5 years in work status (being triggered 20 times per day) Power Supply Battery Powered Battery Type CR123A x 1 Typical Voltage 3V General Operation Temperature -10 °C to 55 °C (14 °F to 131 °F) Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Operation Humidity 10% to 90% Dimension (WxHxD) 29mm × 69mm × 10mm 14mm × 69mm × 10mm 38g Application Scenario – Indoor

$44.44

incl. GST · Equipment supply

Price checked 6 September 2026

Collection availability is confirmed after your order. Please wait for your ready-to-collect notice before visiting.

Free click & collect from Lynbrook. Pay online, then wait for your ready-to-collect email.

Visit showroom ↗Collection steps ↗Need shipping? ↗

Ask about this product ↗

At a glance

Wireless alarm equipment

Showroom enquiries & collection

Ask about this model at 12 Stelvio Close, Lynbrook VIC 3975. Monday–Friday, 9am–5pm; Saturday 9 am–1 pm; closed Sunday. Confirm availability and collection arrangements with the showroom before travelling.

Visit our Lynbrook showroom ↗

Installation & compatibility

Equipment supply does not include installation unless expressly included in your confirmed quote. Check exact model numbers, connections and any required accessories with the team before buying. Confirm setup, cabling and the full work included in your property-specific quote.

Plan a compatible alarm setup

Check whether this listing is a kit, panel, detector, keypad or accessory. Bring your existing panel model and a property plan to confirm compatible devices, wired or wireless connections, power and the intended alert path. A shared brand name alone does not establish compatibility.
