Bosch · Alarms

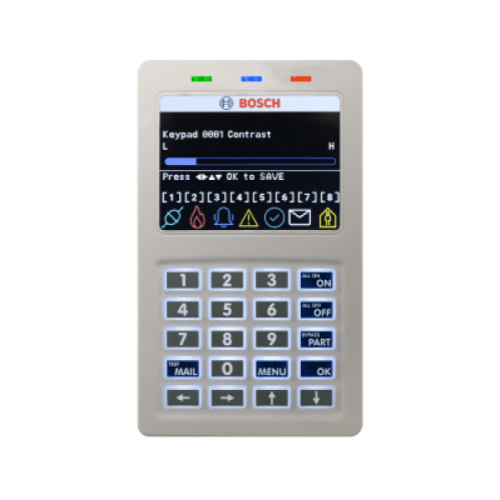

Bosch CP737B WIFI Graphic Keypad for Bosch 6000

Model / SKU: CP737B

Bosch CP737B WIFI Graphic Keypad for Bosch 6000. Designed for the Bosch 6000 Customizable Installer banner display 3.5” Color graphical display with LED backlight 802.11 b/g/n Wi-Fi connectivity built-in 40bit MiFare smart card reader built-in Alpha-numeric text prompting/programming The CP737B Graphic Keypad provides everything you would expect from a State of the Art security keypad and much more. The décor-friendly white plastic housing blends with the most discerning of interior designs. Color-coded, illuminated rubber keys allow for easy identification and operation in all ambient light conditions and provide a positive feel to the user. Key Specifications Connectivity Proprietary RS485 LAN. Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP Panels supported Power +12VDC, 110mA Max (LAN powered +9VDC – +16VDC) Operating temperature (°C) 0 °C – 55 °C Operating relative humidity, non-condensing (%) 5% – 85% Color White Dimensions (H x W x D) (mm) 149 mm x 88 mm x 21.5 mm Wi-Fi standard IEEE 802.11n; IEEE 802.11g; IEEE 802.11b Display color Color Red and Green indicators provide easy identification of Armed and Disarmed areas, and a Blue indicator shows door status when access features are in use. The in-built sounder provides audible feedback during system operation and emits a siren sound during an alarm providing early warning. The volume level can be individually programmable for each keypad connected to the system. The 3.5” graphic color display on the CP737B incorporates the latest pixel technology, which graphically identifies all system conditions at a glance. Variable font sizes and colors are used depending on the situation, with essential information being displayed in large bold font while four or more lines of text can be displayed when additional information is available. The large text display lets users clearly identify the current operating mode and enhances feedback for simple, trouble-free operation. All programmable system features and options are displayed in full text on the keypad, allowing many parameters to be programmed and configured without referring to the manual. DATASHEET
