Dahua · Intercoms

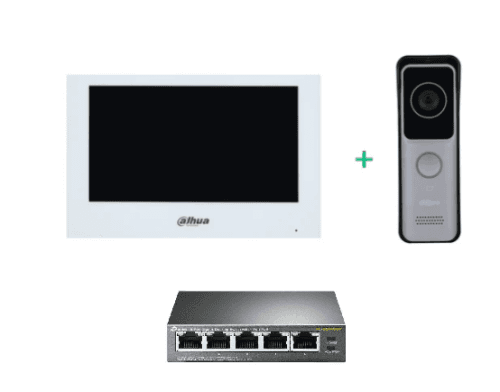

Dahua Intercom KIT-DHI-7INWHT2311R-WP 7inch Touch Screen IP Intercom Kit

Model / SKU: KIT-DHI-7INWHT2311R-WP

Dahua Intercom KIT-DHI-7INWHT2311R-WP 7inch Touch Screen IP Intercom Kit. Dahua 7inch Touch Screen IP Intercom Kit, 1 x 7 inch Monitor VTH2621GW-P , 1 x Outdoor Station VTO2311R-WP , 1 x 4 Port POE Switch In the Box: Dahua 7inch Touch Screen IP Intercom Kit, including: 1 x 7 inch Monitor VTH2621GW-P , 1 x Outdoor Station VTO2311R-WP , 1 x 4 Port POE Switch WIRING REQUIREMENTS; > ethernet cable from Door Station to Poe Switch > ethernet cable from the Monitor to Poe Switch > ethernet cable Poe Switch to the modem (if you wish to set up remote communication) If you need to open/ control 1-2 door / gate strikes, run 4 core cabling from the door station to the respective strikes. These strikes need to be powered separately, ie. the door station will not be able to power these strikes. How to cable strike: This is assuming the electronic gate unlock with 12V power in. Some of the gates do not need any power as it is powered by a motor. In that case, we only need to connect the NO or NC and Com to the relevant connection in the gate. For the gate that has a motor, do not use 12V as it may damage the connection ports in the motor of the gate. If the monitor gives “Lock 1 failed” error intermittently, go to web browser of the VTO > Local Setting > Access Control > Local In there, put the unlock responding interval and unlock period as the same. Unlock responding interval: It is the time, the user has to wait before unlocking the door again after you have already pressed the unlock button Unlock period: It is the unlock time of the latch dahua_villa_n_vthx_nvto_via_template VTH-VTO Dahua Intercom Setup / Configuration Guide Image Name Price Buy hf:att:pa_ai-technology hf:att:pa_audio-features hf:att:pa_camera-count hf:att:pa_camera-style hf:att:pa_detection-features hf:att:pa_deterrence-features hf:att:pa_environmental-features hf:att:pa_focal-length hf:att:pa_hdd-bays hf:att:pa_hdd-included hf:att:pa_ik-rating hf:att:pa_included-storage hf:att:pa_installation-level hf:att:pa_ip-rating hf:att:pa_kit-camera-style hf:att:pa_lens-type hf:att:pa_low-light-technology hf:att:pa_max-recording-resolution hf:att:pa_mounting-position hf:att:pa_night-vision-range hf:att:pa_night-vision-type hf:att:pa_optical-zoom hf:att:pa_poe-ports hf:att:pa_power-connectivity hf:att:pa_protocol-compatibility hf:att:pa_recorder-channels hf:att:pa_remote-viewing hf:att:pa_resolution hf:att:pa_specialist-features hf:att:pa_system-format hf:att:pa_white-light-range hf:att:pa_zoom-type Dahua DHI-VTH2621GW-P 7-Inch IP Video Intercom Indoor Monitor with Touchscreen, PoE & Two-Way Audio $ 156.00 $ 210.00 inc GST +3 Year Warranty & Support Dahua 2MP DHI-VTO2202F-P-S3 2-Wire IP Villa Door Station with PoE, Dual Lock Control, IP65 & IK07 $ 205.00 $ 290.00 inc GST +3 Year Warranty & Support Dahua DH-CS4006-4ET-60 6-Port Cloud-Managed PoE Switch with 4 PoE Ports, 2 Gigabit Uplinks & 60W Budget $ 69.00 inc GST +3 Year Warranty & Support Dahua DH-VTM05R Silver Surface-Mount Rain Cover for VTO2202F Door Station $ 26.00 inc GST +3 Year Warranty & Support Dahua VTM114 flush mount box for VTO2202F-P $ 33.00 $ 43.00 inc GST +3 Year Warranty & Support [/vc_column_text][/vc_column][/vc_row]
