Hikvision · Intercoms

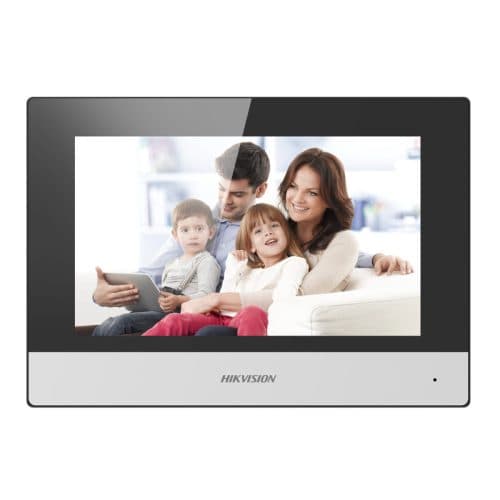

Hikvision DS-KH6320Y-WTE2 Gen2 2WIRE Video Intercom 7-Inch Touch Screen Indoor Room Station WIFI

Model / SKU: DS-KH6320Y-WTE2-2WIRE

Hikvision DS-KH6320Y-WTE2 Gen2 2WIRE Video Intercom 7-Inch Touch Screen Indoor Room Station WIFI. 7-inch IPS touch screen 2-Wire IP indoor station with 1024 × 600 resolution Convenient Hik-Connect APP Mobile Control Receive calls, open the door and live view remotely Easy to use without PC Easy wizard for quick set up Configure the whole system on one touch screen Live view of the door station and cameras in public areas Support voice messages when no response from the indoor station Receive alarms by linkage with a alarm system and notify the center to handle in time Elevator access control DS-KH6320Y-WTE2-2-Wire-Indoor-Station_Datasheet System Parameters Operation System Embedded Linux operation system ROM 32 MB RAM 128 MB Processor Embedded processor Display Parameters Screen Size 7-inch Operation Method Capacitive touch screen Type TFT Resolution 1024 × 600 Video Parameters Lens / Resolution / FOV / Wide Dynamic Range (WDR) / Video Compression Standard / Focal Length / Audio Parameters Audio Input Built-in omnidirectional microphone Audio Compression Standard G.711 U G.711 A Audio Output Buit-in loudspeaker Audio Compression Bitrate 64 Kps Audio Quality Noise suppression and echo cancellation Volume Adjustment Adjustable Capacity Message Capacity 200 captured pictures (with TF card); 200 alarm records 2 MB RAM (without TF card) reserved for events Notice Capacity 200 Linked Network Camera Capacity 16 Linked Indoor Extensions Capacity 16 Linked Doorphone Capacity 17 IP doorphones Max. Network Parameters Network Protocol TCP/IP, SIP, RTSP Wi-Fi IEEE802.11b, IEEE802.11g, IEEE802.11n Bluetooth / 3G/4G / Zigbee / Device Interfaces Alarm Input 8-ch alarm inputs TAMPER / RS-485 1 USB / TF Card Max to 128 G, SD 2.0 or lower version Alarm Output 2 relays (30 V Max.) Lock Control 2 relays, Max. to 30 VDC, 0.3 A Two-Wire IP Interface 1 General Button / Installation Surface mounting Indicator / Weight Net weight:0.325 kg Gross weight: 0.650 kg Protective Level / Working Temperature -10 °C to 50 °C (14 °F to 122 °F) Working Humidity 10% to 90% (no-condensing) Dimension (W × H × D) 200 mm × 140 mm × 23.6 mm (7.87″ × 5.51″ × 0.93″) Battery / Power Supply Powered by KAD704Y or KAD706Y series distributor Application Environment Indoor Power Consumption ≤ 4 W Language English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak Power distributor https://www.securitywholesalers.com.au/product/hikvision-ds-kad706-gen-2-2-wire-intercom-video-audio-distributor-up-to-6-devices/
