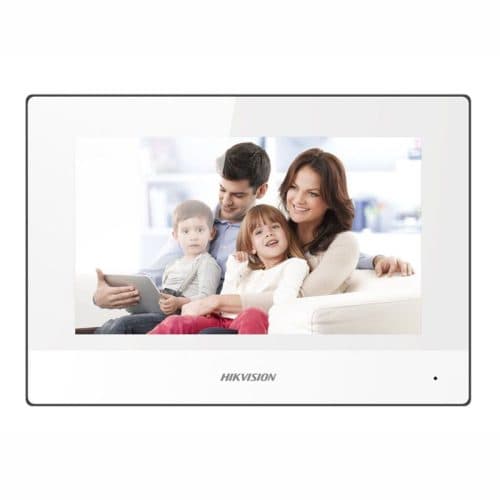

Hikvision DS-KH6320-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station with Wifi (WHITE)

Model / SKU: DS-KH6320-WTE1-WHITE

Hikvision DS-KH6320-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station with Wifi (WHITE). Hikvision DS-KH6320-WTE1 Gen2 7 Inch Video Intercom Room Station in WHITE DS-KH6320-WTE1, 7“ Touch-Screen Indoor Station, 7-inch Colorful TFT LCD, display resolution: 1024 * 600;10/100Mbps Ethernet;standard PoE/ 12 VDC.TF card, max 32G with Wifi Hikvision DS-KH6320-WTE1 in WHITE Gen2 7 Inch Video Intercom Room Station. DS-KH6320-WTE1, 7“ Touch-Screen Indoor Station, 7-inch Colorful TFT LCD, display resolution: 1024 * 600;10/100Mbps Ethernet;standard PoE/ 12 VDC.TF card, max 32G with Wifi Key Feature • New UI V2.0: User friendly design. • 7-inch colorful IPS capacitive touch screen with resolution 1024 × 600. • Standard PoE. • Support capture while video calling. • Remote unlocking via the client software or the mobile client App. • Views live videos of door station and external cameras. System Parameters Operation System: Embedded Linux Operation System Flash: 32MB Memory: 128MB Display Parameters Display Screen: 7-Inch Colorful TFT LCD Display Resolution: 1024 × 600 Operation Method: Capacitive touch screen Audio Parameters Audio Input: Built-in Omnidirectional Microphone Audio Output: Built-in Loudspeaker Audio Compression Standard: G.711 U Audio Compression Rate: 64 Kbps Audio Quality: Noise Suppression and Echo Cancellation Network Parameters Wired network: 10/100 Mbps self-adaptive network Network Protocol: TCP/IP, SIP, RTSP Network interface: 1 RJ-45 10/100 Mbps self-adaptive Device Interfaces Alarm Input: 8-ch alarm inputs TF Card (micro SD card): Max to 32 G, SD 2.0 or lower version General Power Supply: IEEE802.3af standard PoE, 12 VDC/1A Power Consumption: ≤6W Working Humidity: 10% to 90% Working Temperature: -10° C to + 55° C (14° F to 131° F) Dimensions(L × W × H): 200 mm × 140 mm × 15.1 mm (7.9″ ×5.5″ × 0.6″) User Manual DS-KH6320-WTE1 Datasheet Operation Guide Configuration Guide Image Name Price Buy hf:att:pa_ai-technology hf:att:pa_audio-features hf:att:pa_camera-count hf:att:pa_camera-style hf:att:pa_detection-features hf:att:pa_deterrence-features hf:att:pa_environmental-features hf:att:pa_focal-length hf:att:pa_hdd-bays hf:att:pa_hdd-included hf:att:pa_ik-rating hf:att:pa_included-storage hf:att:pa_installation-level hf:att:pa_ip-rating hf:att:pa_kit-camera-style hf:att:pa_lens-type hf:att:pa_low-light-technology hf:att:pa_max-recording-resolution hf:att:pa_mounting-position hf:att:pa_night-vision-range hf:att:pa_night-vision-type hf:att:pa_optical-zoom hf:att:pa_poe-ports hf:att:pa_power-connectivity hf:att:pa_protocol-compatibility hf:att:pa_recorder-channels hf:att:pa_remote-viewing hf:att:pa_resolution hf:att:pa_specialist-features hf:att:pa_system-format hf:att:pa_white-light-range hf:att:pa_zoom-type Hikvision DS-3E1105P-EI 4 Port Smart POE Switch $ 64.00 inc GST +3 Year Warranty & Support Hikvision DS-3E0310HP-E 8 Port Fast Ethernet Unmanaged POE Switch $ 160.00 $ 260.00 inc GST +3 Year Warranty & Support Hikvision Gen2 DS-KD8003-IME1 Video Intercom Module Door Station (Surface Mount) $ 220.00 $ 300.00 inc GST +3 Year Warranty & Support Hikvision Gen2 DS-KD8003-IME1/Flush Video Intercom Module Door Station (Flush Mount) $ 301.00 inc GST +3 Year Warranty & Support
