Hikvision · Intercoms

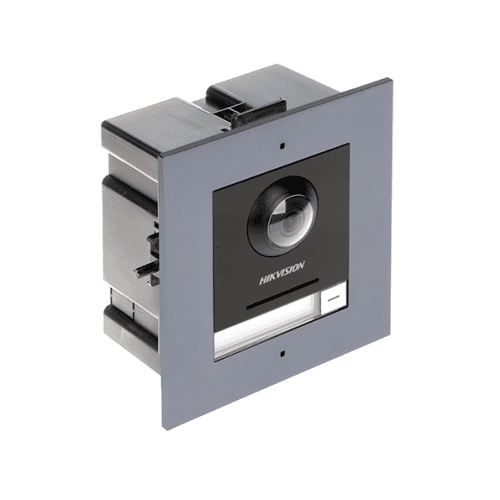

Hikvision Gen2 DS-KD8003-IME1/Flush Video Intercom Module Door Station (Flush Mount)

Model / SKU: DS-KD8003-IME1/Flush

Hikvision Gen2 DS-KD8003-IME1/Flush Video Intercom Module Door Station (Flush Mount). Hikvision DS-KD8003-IME1/Flush Mount Door Station is supplied complete with a Flush Mount housing, typically used for Villa System. FLUSH MOUNT DOOR STATION FLUSH MOUNT FRAME Hikvision DS-KD8003-IME1/Flush Mount Door Station is supplied complete with a Flush Mount housing, typically used for Villa System. The video intercom module door station can realize functions such as video intercom. Features Include 2MP HD video intercom function Access control function Fisheye camera with IR supplement light Tampering alarm and door magnetic alarm supported Supports sub-modules’ access (max.8) Noise suppression and echo cancellation Easy to extend Connects with an additional Door Station and Room Stations via a standard PoE Switch (48V) System Parameters Operation System: Embedded Linux Operation System Operation method: Physical Button Processor: Embedded MCU Processor Camera Parameters Field of view: 180° (Horizontal), 96°(Vertical) Audio Parameters Audio Input: Built-in Omnidirectional Microphone Audio Output: Built-in Loudspeaker(More than 85dB within 20 cm) Audio Compression Standard: G.711 U Audio Compression Rate: 64 Kbps Audio Quality: Noise Suppression and Echo Cancellation Video Parameters WDR: Supported DNR: Supported BLC: Supported Camera: Low Illumination 2 MP HD IR Camera Video Compression Standard: H.264 Resolution: Main Stream: 1920 × 1080 Sub Stream：720 × 480 Anti-flicker frequency: 50 Hz, 60 Hz Network Parameters Network Protocol: TCP/IP, RTSP Ethernet: 10/100 Mbps Self-Adaptive Ethernet Light Supplement Light Supplement Mode: IR Supplement Alarm Parameters Tampering alarm: 1 Device Interfaces Debug: 1 Module-connecting: 1 Relay Output: 2(30V, 1A) I/O Input: 4 General Installation: Flush Mounting, Surface Mounting Power Supply: IEEE802.3af standard PoE, 12 VDC/1A Power Consumption: ≤10 W Physical button: 1 Working Humidity: 10% to 95% Working Temperature: -40° C to +60° C (-40° F to 140° F) IP Protection Level: IP65 Dimensions(L × W × H): 98mm × 99.8mm × 43.9mm(3.86″× 3.93″ ×1.73″) User Manual Datasheet Image Name Price Buy hf:att:pa_ai-technology hf:att:pa_audio-features hf:att:pa_camera-count hf:att:pa_camera-style hf:att:pa_detection-features hf:att:pa_deterrence-features hf:att:pa_environmental-features hf:att:pa_focal-length hf:att:pa_hdd-bays hf:att:pa_hdd-included hf:att:pa_ik-rating hf:att:pa_included-storage hf:att:pa_installation-level hf:att:pa_ip-rating hf:att:pa_kit-camera-style hf:att:pa_lens-type hf:att:pa_low-light-technology hf:att:pa_max-recording-resolution hf:att:pa_mounting-position hf:att:pa_night-vision-range hf:att:pa_night-vision-type hf:att:pa_optical-zoom hf:att:pa_poe-ports hf:att:pa_power-connectivity hf:att:pa_protocol-compatibility hf:att:pa_recorder-channels hf:att:pa_remote-viewing hf:att:pa_resolution hf:att:pa_specialist-features hf:att:pa_system-format hf:att:pa_white-light-range hf:att:pa_zoom-type Hikvision DS-3E1105P-EI 4 Port Smart POE Switch $ 64.00 inc GST +3 Year Warranty & Support Hikvision Gen2 DS-KH8520-WTE1 Video Intercom 10-Inch Touch Screen Indoor Room Station $ 394.00 inc GST +3 Year Warranty & Support Hikvision DS-3E0310HP-E 8 Port Fast Ethernet Unmanaged POE Switch $ 160.00 $ 260.00 inc GST +3 Year Warranty & Support Hikvision DS-KH8350-TE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station $ 412.00 inc GST +3 Year Warranty & Support Hikvision Gen2 DS-KD8003-IME1 Video Intercom Module Door Station (Surface Mount) $ 220.00 $ 300.00 inc GST +3 Year Warranty & Support
