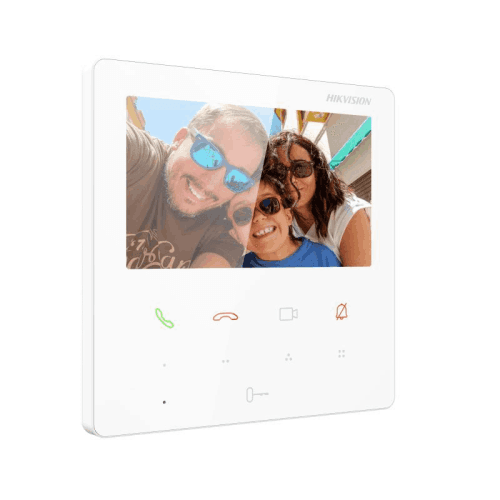

Product image. Check the selected model, lens, colour and package contents before ordering.

Hikvision · Intercoms

Hikvision DS-KH6110-WE1 (White) 4.3″ IP Indoor Station with Wi-Fi & PoE

Model / SKU: DS‑KH6110‑WE1

Hikvision DS-KH6110-WE1 (White) 4.3″ IP Indoor Station with Wi-Fi & PoE. Compact 4.3″ touch-screen IP indoor station with PoE power, live video view of door stations and linked cameras, Wi-Fi support and four user-customisable hot-touch buttons. Ideal for residential or small commercial intercom use. DS-KH6110-WE1_White_Datasheet_20240815 The Hikvision DS-KH6110-WE1 White is a modern and cost-effective IP indoor monitor designed for seamless integration with Hikvision door stations and cameras. Its compact 4.3″ colour touch screen provides a clear, responsive interface for managing calls, unlocking doors, and viewing live video feeds. This unit supports both PoE (IEEE 802.3af) and Wi-Fi connectivity , making installation flexible in both new and retrofit environments. Through the Hik-Connect app , users can receive visitor calls, view cameras, and unlock remotely using a smartphone. The interface includes four customisable hot-touch buttons for quick access to functions such as unlock, intercom, or camera view. Up to 16 indoor extensions can be linked for multi-room setups, ideal for villas or small apartment complexes. Designed for convenience and efficiency, the DS-KH6110-WE1 consumes less than 4 W of power, offers simple wall or table mounting, and features a slim 21 mm profile for discreet indoor placement. Key Features 4.3″ colour capacitive touch screen (480 × 272) PoE power (IEEE 802.3af) or 12 V DC input Wi-Fi (2.4 GHz) support alongside wired Ethernet Live view and app integration with linked door stations and cameras Four user-customisable hot-touch buttons Supports up to 16 indoor extensions Supports major protocols: TCP/IP, SIP, RTSP Event/notice capacity: 200 each Compact mount: 120 × 120 × 21 mm Power consumption ≤ 4 W Operating temperature: –10 °C to +50 °C Specifications Table Attribute Specification Model Number DS-KH6110-WE1 Display 4.3″ capacitive touch screen Screen Resolution 480 × 272 Power Supply PoE (IEEE 802.3af) or 12 V DC Power Consumption ≤ 4 W Network Interface 1 × RJ-45 100 Mbps Wi-Fi Support 802.11 b/g/n (2.4 GHz) Protocols Supported TCP/IP, SIP, RTSP Linked Indoor Station Cap. Up to 16 indoor extensions Event/Notice Capacity 200 / 200 Mounting Wall mount or table mount Operating Temperature –10 °C to +50 °C Dimensions (W×H×D) 120 × 120 × 21 mm Application Environment Indoor Installation Instructions Choose mounting location inside — preferably at eye level (~1.4-1.6 m) for ease of use and visibility. Run network cable (Cat5e/Cat6) from network switch or PoE injector to the mounting box. Confirm your switch or injector supports IEEE 802.3af PoE and has sufficient port/power budget for this station. Mount the station using the included backplate and fix securely. Ensure flush alignment and no wobble. Connect the RJ-45 cable, apply PoE (or 12 V DC if not using PoE) and power up the device. Configure network settings (IP address, gateway), link the indoor station to door station(s) via the system menus. Use the Hik-Connect app or station UI to register devices and test live view, call button, unlocking and custom hot-buttons. Label the 4 custom buttons as required (e.g., “Front Door”, “Gate”, “Camera 1”, “Emergency”). Set up default power-fail behaviour and confirm system robustness (e.g., if network drops, fallback path works). Final test: verify audio clarity, touch-screen responsiveness, Wi-Fi connectivity (if used), door station link reliability and mobile app push-notification.
