Hikvision · Alarms

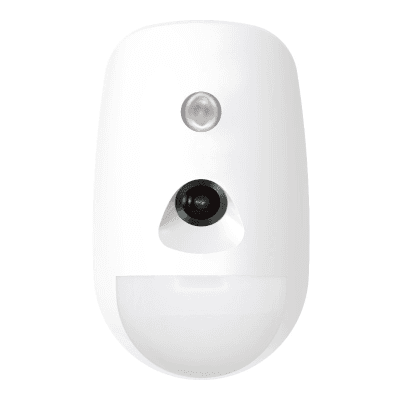

Hikvision DS-PDPC12P-EG2 Wired PIRCAM detector

Model / SKU: DS-PDPC12P-EG2

Hikvision DS-PDPC12P-EG2 Wired PIRCAM detector. Hikvision Wired PIRCAM Detector | AX Hybrid Pro Support | PIR Motion Detection | Built-In Camera Verification | Wired Intrusion Alarm Sensor | Indoor Security Detection The Hikvision DS-PDPC12P-EG2 delivers a wired PIRCAM detector designed for indoor intrusion alarm systems requiring motion detection with visual event verification. Featuring PIR detection and built-in camera support, it helps provide clearer alarm confirmation for compatible Hikvision AX Hybrid Pro security installations. It also offers a practical wired detector option for sites needing more information than standard motion detection alone, with this detector available at Security Wholesalers for professional intrusion alarm projects. This makes it suitable for homes, offices, retail areas, stockrooms, hallways, and internal entry zones where verified alarm events are important. Built for compatible Hikvision wired alarm systems, it supports stable detector integration for professional indoor security coverage. Key Features Wired PIRCAM Detection: Combines PIR motion detection with camera-based alarm verification. AX Hybrid Pro Support: Designed for compatible Hikvision AX Hybrid Pro intrusion alarm systems. Built-In Camera Verification: Helps provide visual confirmation when motion events are triggered. Wired Alarm Integration: Supports stable connection for professional wired security installations. Indoor Detection Design: Suited to internal areas requiring reliable motion and event verification. Professional Security Fit: Suitable for homes, offices, retail spaces, stockrooms, and entry zones. Additional Information DS-PDPC12P-EG2_Datasheet_V1.0_202207 Product Overview The Hikvision DS-PDPC12P-EG2 Wired PIRCAM Detector is an AX Hybrid Pro intrusion detector that combines passive infrared motion detection with built-in camera-based video verification. It provides up to 12m detection range with an 85.9° detection angle, up to 30kg pet immunity and high-speed wired bus communication for compatible Hikvision alarm systems. The integrated camera captures JPEG images for alarm verification, helping users or monitoring centres confirm activity after a motion event. With Smart Environmental Control, polarising IR lens design, front and rear tamper protection and remote app configuration support, it is well suited to homes, offices, retail stores, warehouses and commercial indoor alarm zones where visual verification is required. Key Capabilities PIR Motion with Camera Verification The DS-PDPC12P-EG2 combines PIR detection and video verification, helping confirm alarm events with captured images instead of relying on motion detection alone. 12m / 85.9° Detection Coverage The detector provides up to 12m indoor PIR detection with an 85.9° angle, making it suitable for rooms, corridors, offices and commercial interior spaces. Up to 30kg Pet Immunity Pet immunity helps reduce false alarms from pets up to 30kg when the detector is installed correctly and configured to suit the room layout. Speed-X Wired Bus Communication High-speed wired bus communication with AES-128 encryption supports reliable detector connection and alarm image transmission in compatible AX Hybrid Pro systems. IR Image Capture Support The polarising IR lens and 12m infrared fill light help support clearer image capture in low-light alarm events for improved verification. Best For Homes and Apartments: Suitable for indoor alarm zones where motion detection and image verification are preferred. Pet-Friendly Properties: Useful where pets up to 30kg may remain inside while the alarm system is armed. Retail Stores: Practical for sales floors, back rooms, storage areas and after-hours event verification. Offices and Clinics: A good fit for reception areas, hallways, consultation rooms and internal commercial spaces. AX Hybrid Pro Systems: Best where a wired detector with PIRCAM verification is required instead of a standard PIR-only sensor. Why Choose the DS-PDPC12P-EG2 The DS-PDPC12P-EG2 is a strong choice when a wired alarm system needs more context than a standard PIR detector can provide. By combining PIR motion detection with image verification, it helps users and monitoring teams confirm whether an alarm event is likely to be genuine before taking action. The 12m range, 30kg pet immunity, Smart Environmental Control and IR-assisted image capture make it practical for many indoor residential and commercial environments. For alarm projects supplied through Security Wholesalers, this detector should be selected after confirming AX Hybrid Pro compatibility, bus wiring, mounting height, room layout and image verification requirements. Buyer Decision Tips Buyer Tip: Choose the DS-PDPC12P-EG2 when you need a wired indoor PIRCAM detector with 12m detection, 30kg pet immunity and image verification. If you only need basic motion detection, a standard wired PIR may be more cost-effective. Installation Tip: Confirm AX Hybrid Pro panel compatibility, Speed-X bus wiring, mounting height, camera view, privacy expectations, pet movement paths, IR reflections and room lighting before installation. Key Features & Technical Specifications Model DS-PDPC12P-EG2 Product Type AX Hybrid Pro wired PIRCAM detector Detection Method Passive Infrared and video verification Detection Range 12m Detection Angle 85.9° Detection Zones 52 Detectable Speed 0.3m/s to 2m/s Sensitivity Auto, High, Pet Pet Immunity Up to 30kg White Light Filter 6500lux Smart Environmental Control Advanced digital signal processing and 3D optics Digital Temperature Compensation Supported Creep-Zone Protection Supported Digital Processing Supported Sealed Optics Supported Camera Function Built-in camera for image verification Video Field of View 109° horizontal, 60° vertical Image Type JPEG Image Resolution 1920 × 1080, 1280 × 720 or 640 × 480 IR Fill Light Infrared light with 12m fill range IR Lens Design Polarising IR lens design for more uniform night illumination Image Storage Large integrated memory buffer for image storage Transmission Technology Speed-X Bus Transmission Method Wired high-speed bus Transmission Security AES-128 encryption Transmission Range Up to 1km in free space / supported wired bus layout Enrolment Methods Power up, Remote ID and QR code Remote Configuration Fully remote configurable through app in compatible systems Tamper Protection Front and rear tamper protection LED Indicator Blue alarm indicator and orange fault indicator Alarm Output High Speed Bus Power Supply 9 to 16VDC, typical 12VDC Power Consumption 100mA max. Operating Temperature -10°C to 55°C Operating Humidity 10% to 90% Dimensions 73 × 130.5 × 56.7mm Weight Approx. 195g Mounting Height 1.8m to 2.4m Mounting Method Wall mounting Application Scenario Indoor Optional Brackets Wall and ceiling accessories available where required Ideal Use Cases Homes with Image Verification Use the detector where homeowners need PIR motion detection with image capture to help verify indoor alarm events. Pet-Friendly Alarm Areas Suitable for rooms where pets up to 30kg may remain inside while the alarm system is armed, subject to correct placement. Retail Intrusion Verification Practical for sales floors, stockrooms and back-of-house areas where captured images can help confirm after-hours movement. Office and Clinic Interiors A good fit for reception areas, hallways and consultation rooms requiring wired PIRCAM detection. AX Hybrid Pro Alarm Systems Useful where a compatible wired bus alarm system needs motion detection and visual alarm confirmation from one detector. Choosing the Right Model Choose this model if: You need a wired AX Hybrid Pro PIRCAM detector with 12m PIR detection, 30kg pet immunity, image verification, IR fill light and Speed-X bus communication. Choose a different detector if: You need wireless AX PRO communication, outdoor detection, a standard PIR without camera verification, curtain detection or ceiling-mounted coverage as standard. Check before ordering: Confirm AX Hybrid Pro compatibility, wiring method, bus range, mounting height, camera field of view, privacy requirements, pet movement areas and app or monitoring-centre image verification workflow. FAQs What is the Hikvision DS-PDPC12P-EG2 used for? The DS-PDPC12P-EG2 is used as a wired PIRCAM detector for compatible AX Hybrid Pro intrusion alarm systems. It detects indoor motion and captures images for alarm verification when an event occurs. What does PIRCAM mean? PIRCAM means the detector combines passive infrared motion detection with a built-in camera. This allows the system to detect movement and provide captured images so users or monitoring centres can better verify alarm events. What detection range does this detector provide? The DS-PDPC12P-EG2 provides up to 12m PIR detection range with an 85.9° detection angle. Correct mounting height, detector angle and room layout are important for reliable coverage. Does the DS-PDPC12P-EG2 support pet immunity? Yes. It supports pet immunity up to 30kg, helping reduce unwanted alarms caused by pets when installed and configured correctly. Pet immunity depends on mounting height, sensitivity setting, pet movement paths and furniture layout. Is this detector wired or wireless? The DS-PDPC12P-EG2 is a wired detector using Speed-X Bus communication. It is designed for compatible Hikvision AX Hybrid Pro systems, not standard wireless AX PRO installation unless the system design supports it. Can the camera capture images in low light? Yes. The detector includes infrared fill light with a 12m fill range and a polarising IR lens design for more uniform night illumination. For projects supplied through Security Wholesalers, placement should still avoid reflective surfaces and direct glare. Is this detector suitable for outdoor use? No. The DS-PDPC12P-EG2 is designed for indoor use. For outdoor alarm coverage, choose a Hikvision detector specifically rated for external environments and outdoor detection patterns. What should be checked before installation? Before installation, confirm AX Hybrid Pro panel compatibility, Speed-X bus wiring, power supply, mounting height, detection direction, camera field of view, privacy requirements, pet movement zones, IR reflections, app configuration and monitoring-centre image verification requirements. Additional Information DS-PDPC12P-EG2_Datasheet_V1.0_202207
