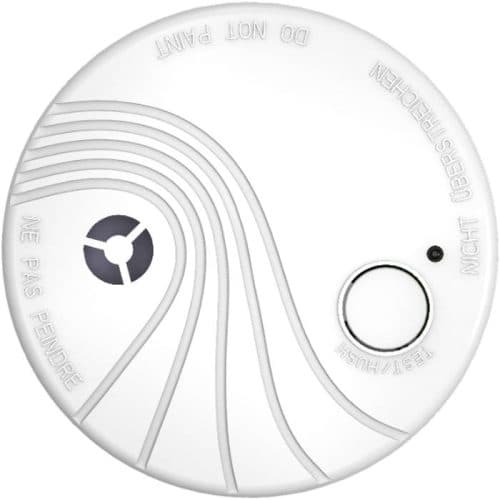

Hikvision DS-PDSMK-S-WB Ax Pro Wireless Photoelectric Smoke Sensor Detector

Product image. Check the selected model, lens, colour and package contents before ordering.

Product details

Brand: Hikvision
Model / SKU: DS-PDSMK-S-WB
Category: Alarm

Hikvision · Alarms

Hikvision DS-PDSMK-S-WB Ax Pro Wireless Photoelectric Smoke Sensor Detector

Model / SKU: DS-PDSMK-S-WB

Hikvision DS-PDSMK-S-WB Ax Pro Wireless Photoelectric Smoke Sensor Detector. High quality chamber with photoelectric sensor 10 years battery life DS-PDSMK-S-WB Note – this is only compatible with the HIKVISION AX PRO, not the HYBRID. High quality chamber with photoelectric sensor 10 years battery life Detection Performance Detection Method Chamber With Photoelectric Sensor Feature Environment Temperature Indicator Support Signal Strength Indicator Support Interface Power Switch Power Up Enrolling LED Indicator Red (Alarm) Buzzer ≥ 85dB @ 3 m Transmission Transmission Method Two-Way RF Wireless Transmission Frequency 433MHz Transmission Security AES-128 Encryption Transmission Range(Free Space) 800m Enrolling Method Power up;Remote ID;QR Code Electrical Characteristics Standard Battery Life 10 years in standard standby status Power Supply Battery Powered Battery Type Non Replaceable CR17450 x 1 Typical Voltage 3V General Operation Temperature -10 °C to 60 °C (14 °F to 140°F) Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Operation Humidity 10% to 90% Dimension(WxHxD) φ102 × 35mm 125g Mounting Method Ceiling Application Scenario Indoor

$74.00

incl. GST · Equipment supply

Price checked 6 September 2026

Showroom availability and collection timing are being confirmed. Online ordering is not open yet.

Ask about this product ↗

At a glance

Wireless alarm equipment
Sensor

Showroom enquiries & collection

Ask about this model at 12 Stelvio Close, Lynbrook VIC 3975. Monday–Friday, 9am–5pm; Saturday 9 am–1 pm; closed Sunday. Online ordering is being prepared. Confirm availability and collection arrangements with the showroom before travelling.

Collection information ↗

Installation & compatibility

Equipment supply does not include installation unless expressly included in your confirmed quote. Check compatibility with existing cameras, recorders and cabling before buying. Kit storage and additional equipment depend on the selected options.

Plan your Hikvision setup

Compare the listed model, lens and equipment options with the area you need to see. For an upgrade, have your current recorder model ready so compatibility can be checked. Equipment prices are separate from installation unless your quote says otherwise.
